Products

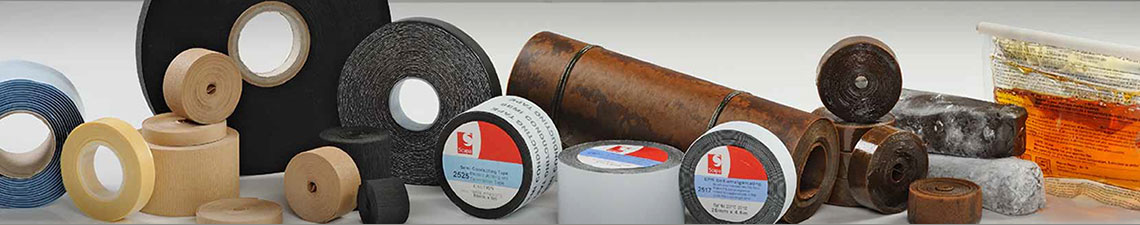

Developed in partnership with some of the key market leaders in the cable components field, the specialist Pro:Fix product range includes self-amalgamating tapes, sealing putties and resins along with impregnated paper tapes. These high quality components are used in the jointing, termination and repair of MV and HV power cables as well as telecommunication applications.
Self Amalgamating Insulating Tapes
| Product Code | Thickness (mm) | Material | Tensile Strength (MPa) | Elongation at Break (%) | Volume Resistivity (Ohm.m) | Dielectric Strength (kV/mm) | Operating Temperature | Applications |
|---|---|---|---|---|---|---|---|---|
| 2501 | 0.5 | PIB Rubber | 2 | 900 | 1.5 x 1013 | 42 | -40°C to +90°C | For jointing and repair of power cables and general purpose protection, waterproofing and sealing |
| 2504 | 0.75 | 1 x 1013 | ||||||
| 2515 | 0.5 | EPR Rubber | 3 | 800 | 2 x 1013 | -40°C to +100°C | For jointing and repair of power cables and the insulation, waterproofing and protection of electrical components | |
| 2517 | 0.75 | 900 | 1 x 1013 | For jointing and repair of power cables and the insulation, waterproofing and protection of electrical components. |
Semi-Conducting Tape
| Product Code | Thickness (mm) | Material | Tensile Strength (MPa) | Elongation at Break (%) | Volume Resistivity (Ohm.m) | Dielectric Strength (kV/mm) | Operating Temperature | Applications |
|---|---|---|---|---|---|---|---|---|
| 2525 | 0.75 | EPR Rubber | 1.5 | 800 | 1.3 | - | -40°C to +100°C | For jointing power cables up to 69kV and smoothing electrical stresses on connectors, terminations and overhead powerlines. |
Sealing Putty
| Product Code | Thickness (mm) | Material | Tensile Strength (MPa) | Elongation at Break (%) | Volume Resistivity (Ohm.m) | Dielectric Strength (kV/mm) | Operating Temperature | Applications |
|---|---|---|---|---|---|---|---|---|
| 2573 | 2 | Butyl Rubber | 0.2 | - | 5 x 1012 | 16 | -30°C to +80°C | For use as moisture proof seal on telecommunication networks and distribution systems. As a water barrier on HV cable joints and as insulation materials on LV joints. |
Stress Control Product
| Product Code | Thickness (mm) | Tensile Strength (MPa) | Elongation at Break (%) | Volume Resistivity (Ohm.m) | Dielectric Constant | Dielectric Loss Angle | Operating Temperature | Applications |
|---|---|---|---|---|---|---|---|---|
| 2527 | 1 | 2 | 1000 | 5 x 1011 | 10 | 0.03 | -40°C to +100°C | For electrical stress control in all forms of joints and terminations for MV cables. |
Please contact us to request Technical Datasheets
